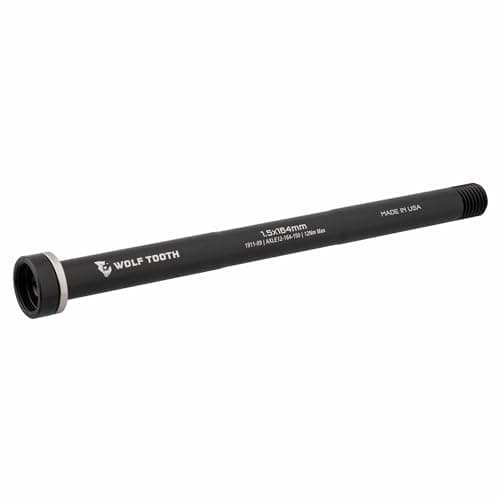

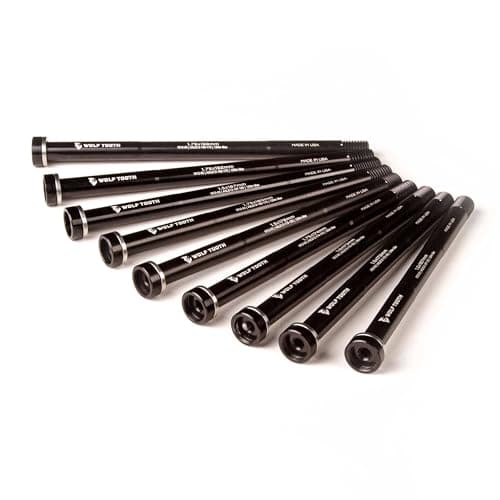

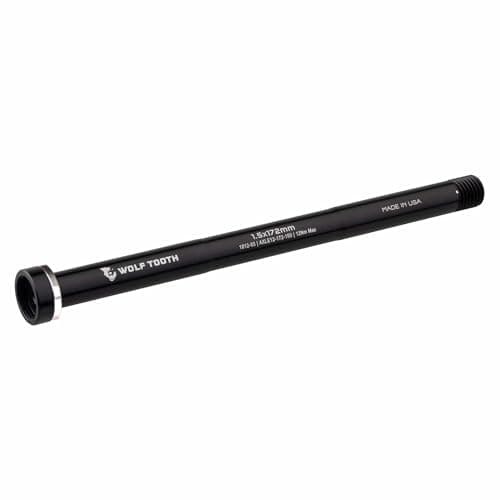

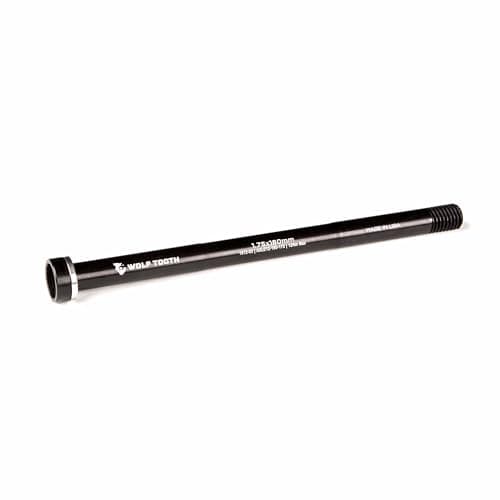

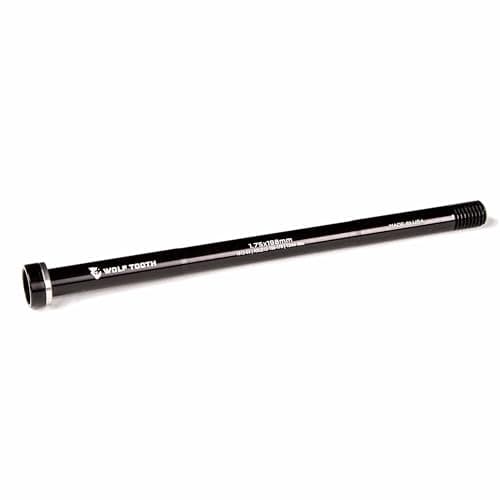

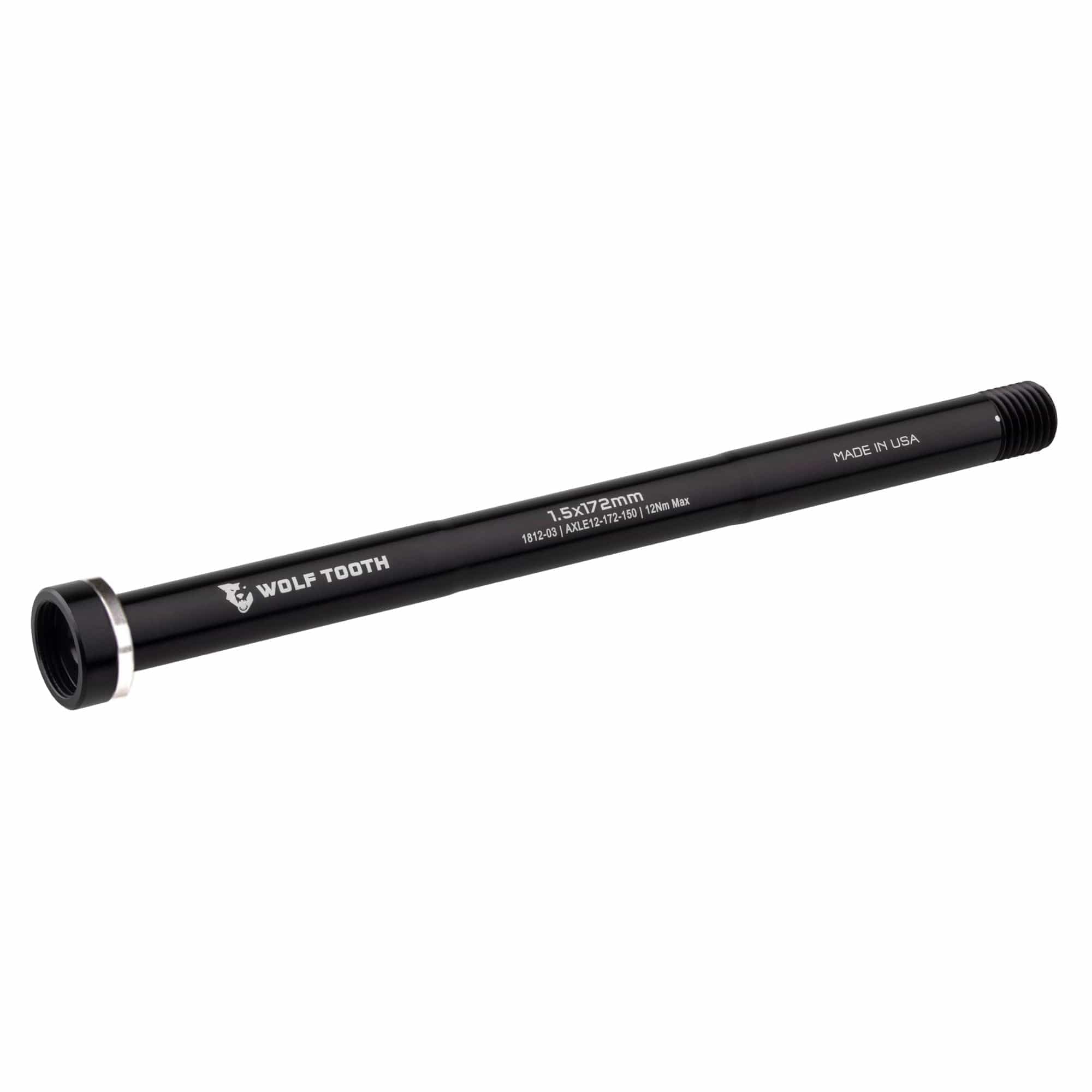

Wolf Axle Rear Thru Axles for Mountain Bikes
Alveytech Axle
size
Size
$39.99$61.52
100 in stock
1
Wishlist
Details
Usage & Benefits
Product Features
Size and Compatibility
- 12mm Rear Thru Axle: The axle diameter is 12mm, and the tool interface accepts both 5mm and 6mm hex keys. Suitable for a wide range of rear suspension bicycles, the axle length is independent of hub dimensions. Use the provided measurement guide to determine the correct length needed. The acceptable tolerance is within ±2mm.
Design and Functionality
- Captive Steel Washer: The Wolf Tooth Rear Axle employs a proprietary captive steel washer under the head. This design significantly reduces friction on the dropout face, protecting your frame against wear and tear.
- Torque Distribution: The washer design ensures that more of the tightening torque is transferred to a clamping load, creating a stiffer interface that improves overall performance and stability.
- Ease of Use: The axle is designed to prevent sticking or galling, enhancing ease of removal when needed.
Materials and Weight
- 7075 T6 Aluminum and Plated Steel Washer: Constructed from high-strength 7075 T6 aluminum, the axle is lightweight yet retains exceptional durability. The steel washer is plated for increased longevity and reduced wear.

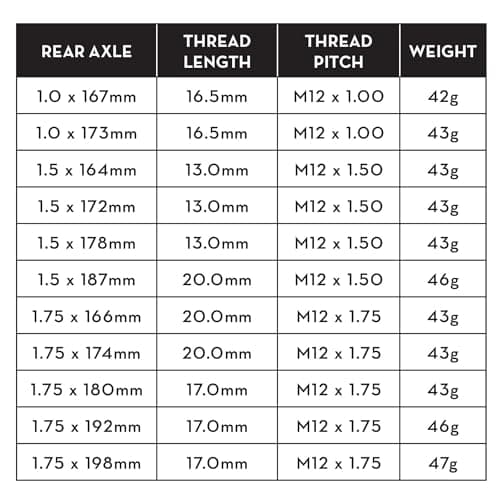

Specifications
- Diameter: 12mm
- Tool Interface: 5mm and 6mm hex key
- Torque Spec: Maximum 12 Nm
Manufacturing Details
- Made in the USA: Handcrafted in the USA, ensuring quality and reliability.
This 12mm throug axle is designed to enhance performance and protect your frame, making it an indispensable upgrade for any rider.
