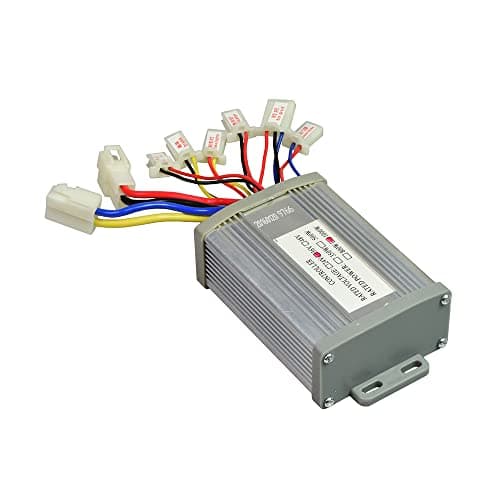

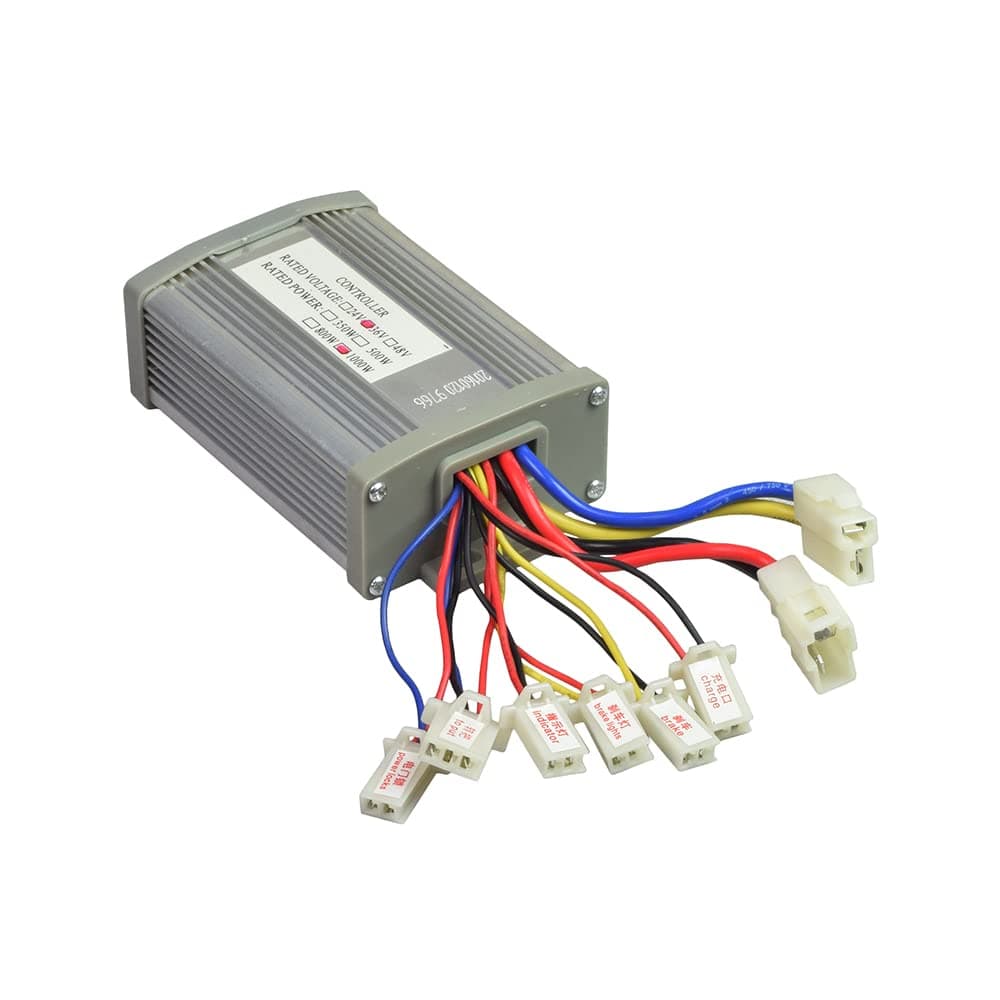

AlveyTech Electric Scooter Parts: 36V 1000W Speed & Voltage Controller
Alveytech 36V
$38.29$47.86
100 in stock
Details
Introducing an exceptional 36 volt 1000 watt universal voltage/speed controller designed for electric scooters, bikes, go-karts, and mopeds. Equipped with eight connectors: Battery, Motor, Charger, Lock, Throttle, Brake Connector, Brake Light, and Pilot Lamp. This controller is specifically designed for use with 3-wire throttle systems and is compatible with most 36 volt products featuring 600-1000 watt motors. However, please note that this controller is not compatible with 4-wire or Currie 5-pin or 6-pin half grip throttles.

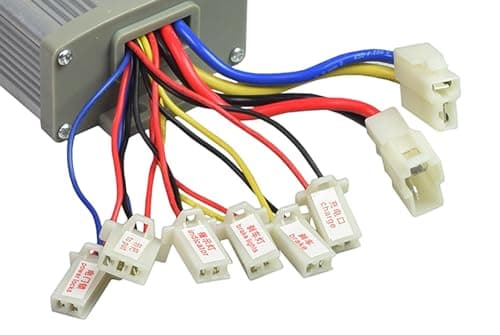

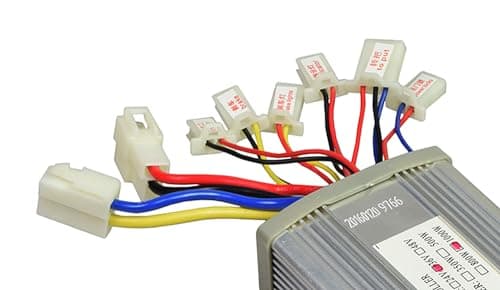

The throttle wiring specifications are outlined below for your reference. Some old controller connectors may need to be cut and spliced, but not all of them. The controller connections are as follows: - Battery Connector (Black & Red Wires, Thick) - Motor Connector (Blue & Red Wires, Thick) - Charge Connector (Black and Red Wires, Thin) - Power Locks Connector (Blue & Red Wires, Thin) - Throttle Connector (Red, Black, & Blue Wires, Thin) - Brake Connector (Black & Yellow Wires, Thin) - Brake Light (Black & Red Wires, Thin) - Pilot Lamp (Black & Red Wires, Thin)
Don't miss your chance to experience the power and performance of this 36 volt 1000 watt controller, suitable for a range of electric vehicles. Compatible with a variety of throttle systems, this controller is a must-have for any electric vehicle enthusiast.
product information:
| Attribute | Value | ||||
|---|---|---|---|---|---|
| package_dimensions | 8.46 x 3.7 x 1.61 inches; 8.47 ounces | ||||
| item_model_number | Z09-1656 | ||||
| date_first_available | March 1, 2022 | ||||
| manufacturer | AlveyTech | ||||
| best_sellers_rank | #242,091 in Sports & Outdoors (See Top 100 in Sports & Outdoors) #924 in Scooter Parts | ||||
| customer_reviews |
|
