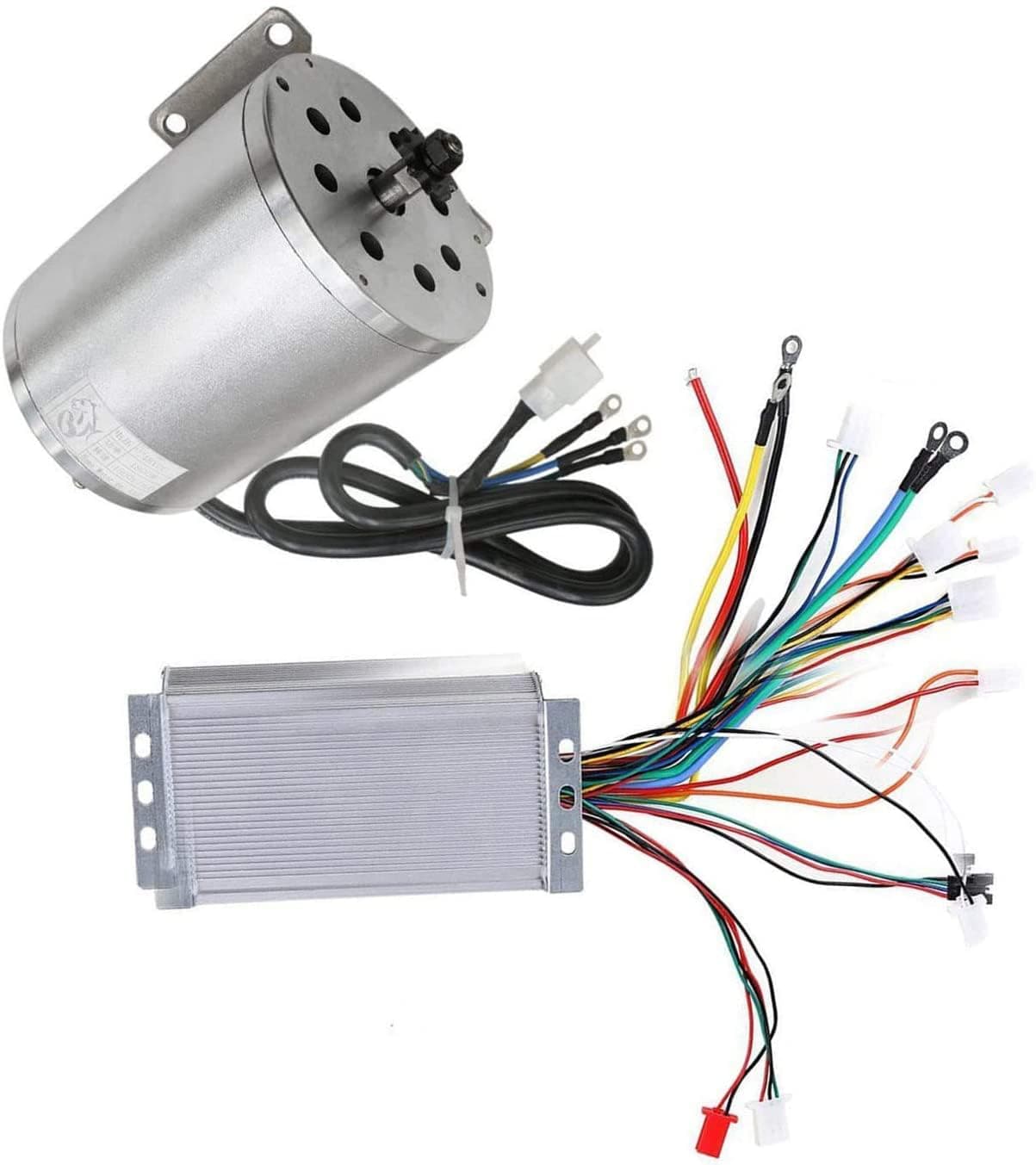

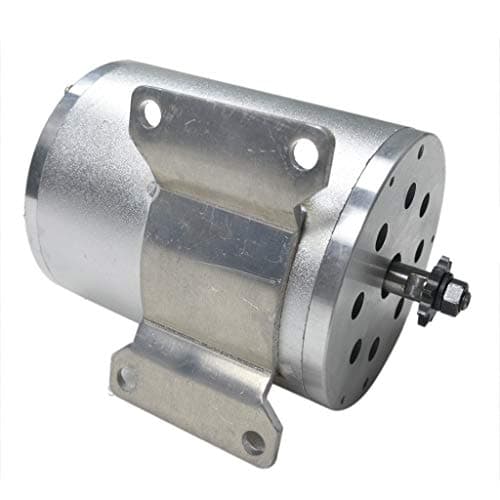

48V 1800W Brushless DC Motor, 4500RPM for DIY Part Scooter E-Bike Go Kart

All-In-One Product Summary

Brushless Motor Features: Electric Brushless DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise, High Quality, Long Life.

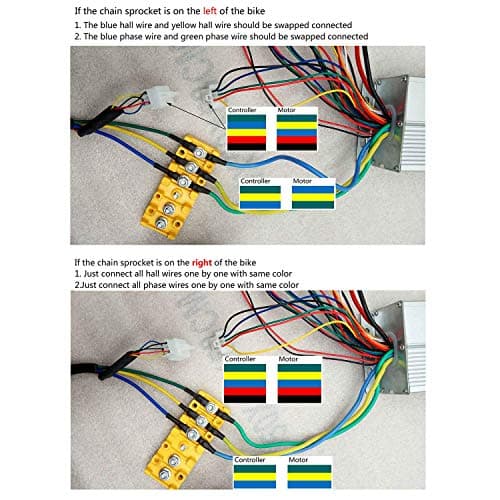

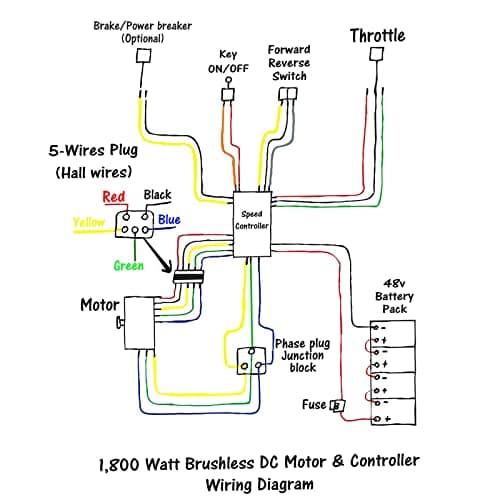

Key Features and Instructions: - Run Direction: Change the wiring between the motor and controller to switch directions. Follow these steps: 1. Connect the three thick wires (yellow, green, and blue) as follows: Yellow to Yellow, Blue to Green, Green to Blue. 2. Connect the 6 Hall wires: Blue to Yellow, keep the others unchanged.

• Technical Specifications:
• Input Voltage: 48V DC
• Output Power: 1800W
• Rated Current: 33A
• Rated Speed: 4500 RPM
• Maximum Speed: 5200 RPM

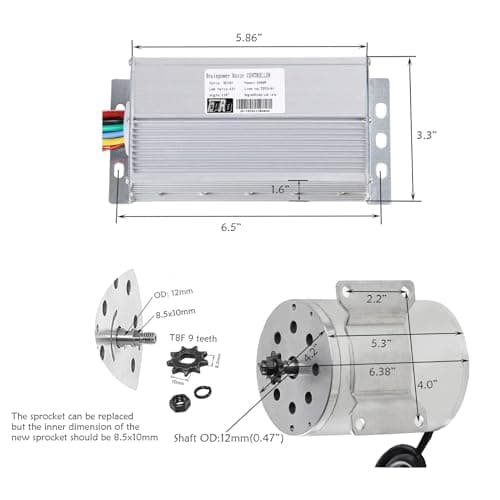

• Sprocket: T8F-9T

• Maximum Current: 37.5A

• Applications: Ideal for a variety of motorized vehicles including go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes, e-tricycles, 4-wheelers, quads, buggies, and drift trikes.
