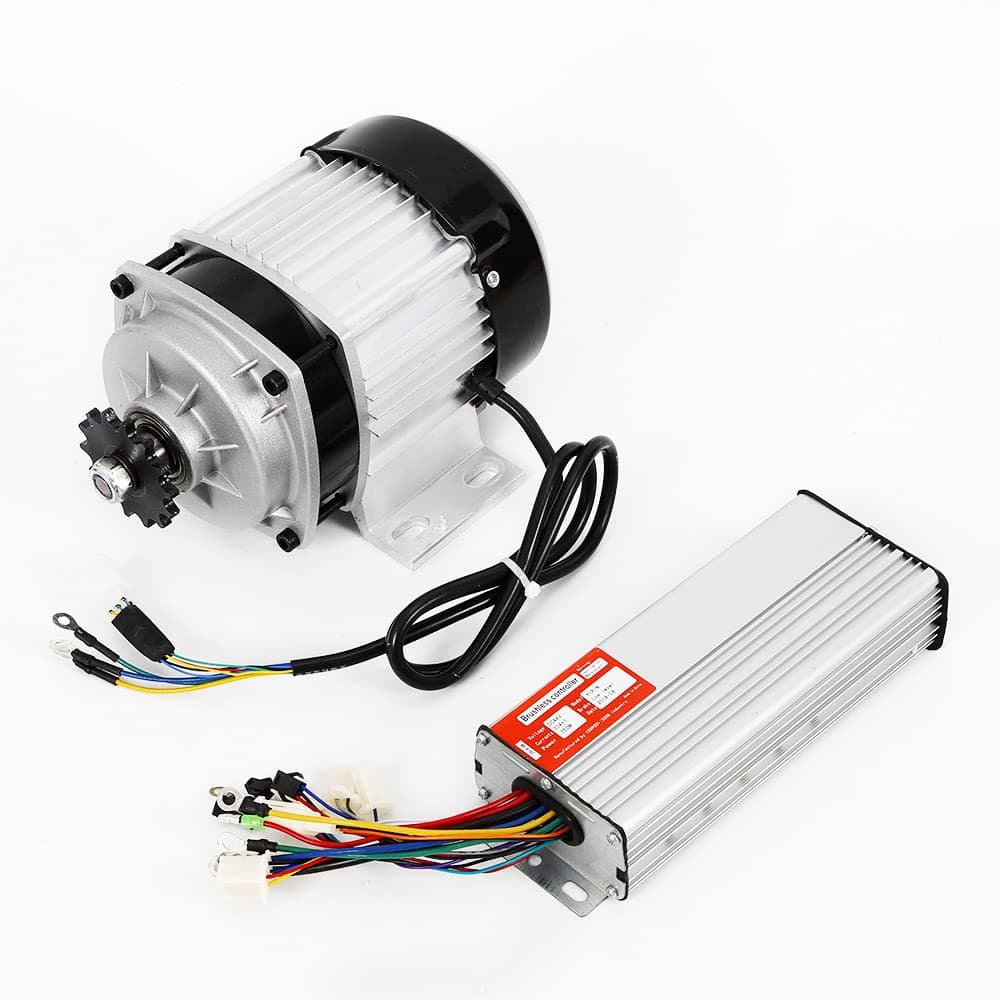

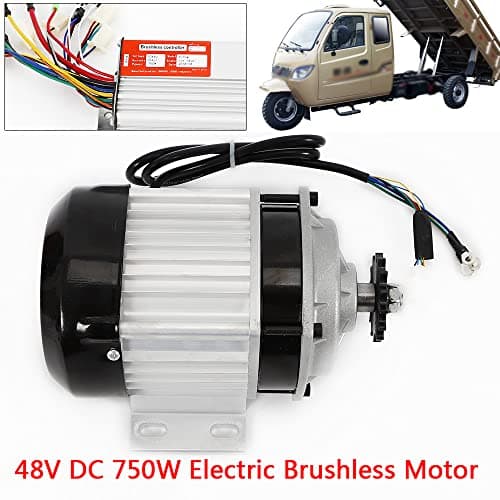

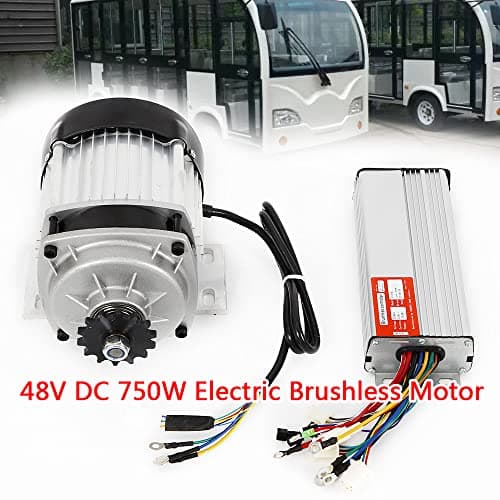

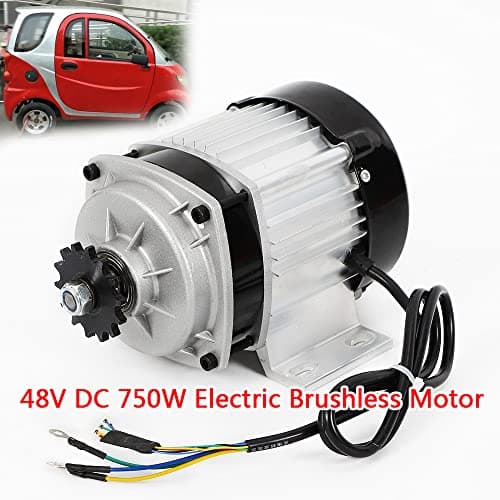

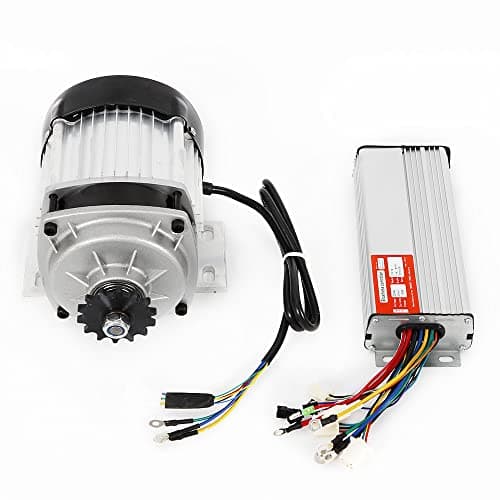

Electric Brushless Motor Kit with Controller for DIY E-Bike Tricycle Quad

Application: This motor kit is designed for tricycles, e-bikes, electric scooters, and medium-sized tricycles.

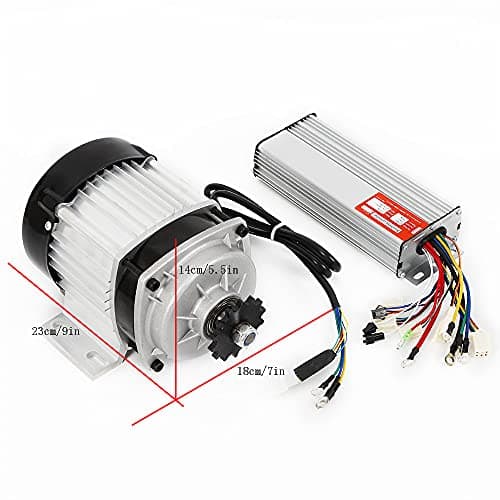

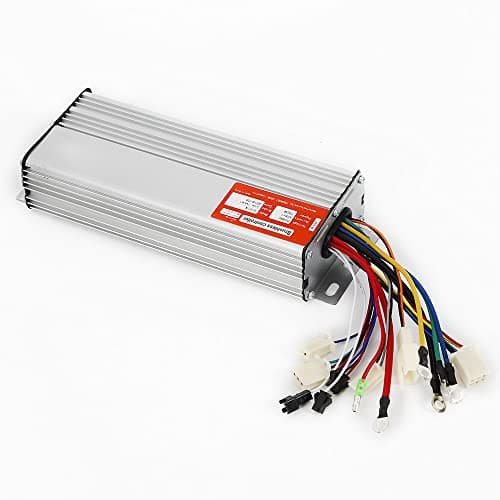

Specification: - Gross Weight: 6.1kg/13.44lbs - Package Size: 403020cm/15.7411.87.9in - Controller: - Matching Motor: 48V 750W - Rated Voltage: 48V DC - Under Voltage Protection: 42±0.5V - Speed Regulator (Throttle): 1-4V - Motor: - Material: Aluminum, Copper - Type: Pure Copper - Rated Voltage: 48V DC - Output: 750W - Rated Current: 15A - No Load Current: ≤3.0A - Rated Speed: 516RPM - No Load Speed: 3100RPM - Gear Ratio: 1:6 - Drive Sprocket: 420-14T - Rated Torque: 2.56N.m - Efficiency: ≥83% - Max. Load-bearing Capacity: About 300kg/661lbs - Protection Level: IP65 - Speed Gears: High, Medium, Low - Motor Size: 231814cm/975.5in - Motor Net Weight: 5.2kg/11.46lbs

Package Included: - 1Motor - 1Controller

Notes: - Please check the connector type, motor size, and specs before ordering. - The speed decreases according to the load. A lower rated speed improves motor life. - Battery and charger are not included. - Please allow for slight color differences and a 1-3cm error due to manual measurement.

Features: - Three-Speed Adjustable: The brushless motor offers three speeds (high, medium, low) to cater to different needs. - Excellent Load Capacity: With a load capacity of about 661 pounds, the motor can handle heavy loads comfortably. - Waterproof and Dustproof: The IP65 protection level ensures the motor is resistant to water and dust, enhancing durability. - High Efficiency and Energy-Saving: The permanent magnet brushless motor is energy-efficient and provides stable performance. - High Power and Torque: The 750W motor with 2.56N.m torque is powerful enough for climbing hills effortlessly on your electric tricycle.

product information:

Attribute	Value
product_dimensions	‎11.41 x 11.41 x 7.48 inches; 13.22 Pounds
item_model_number	‎/
date_first_available	‎January 23, 2024
manufacturer	‎MuChaIOAK
country_of_origin	‎China
best_sellers_rank	#1,510,942 in Sports & Outdoors (See Top 100 in Sports & Outdoors) #569 in Scooter Motors
