High-Speed 1800W 48V Brushless Electric Scooter & Go Kart Motor Kit
Alveytech 48V Motor
$167.99$294.72
100 in stock
Details
The Ultimate Feature Set
Brushless Motor Features
Enhance Your Electric Vehicle With Our High-Quality Electric Brushless DC Motor. Key Features Include: - Aluminum Body: Durable and Lightweight - Full Copper Coil: High Efficiency - Heat Resistant: Operates Smoothly at High Temperatures - Naturally Air Cooled: No Need for Complex Coolant Systems - Low Noise: Quiet Operation for a Better Riding Experience - More Long-Life: Reliable and Durable Design
Changing Running Direction
To change the motor's direction, follow these simple steps: 1. First Step: Connect the controller to the motor using the 3 phase wires (thick yellow, green, and blue): - Yellow to Yellow - Blue to Green - Green to Blue 2. Second Step: Connect the 6 Hall wires: - Blue to Yellow - Other wires remain unchanged.
Specifications
- Input Voltage: 48V DC
- Output Power: 1800W
- Rated Current: 33A
- Rated Speed: 4500 RPM
- Maximum Speed: 5200 RPM
- Sprocket: T8F-9T
- Maximum Current: 37.5A
Ideal for Various Vehicles
Perfect for go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes, electric tricycles, 4 wheelers, quad bikes, buggies, and drift trikes.
Benefits of a Brushless Motor
- High Efficiency
- Power Frugal
- Low Noise
- Long Lifespan
- Stable Operation

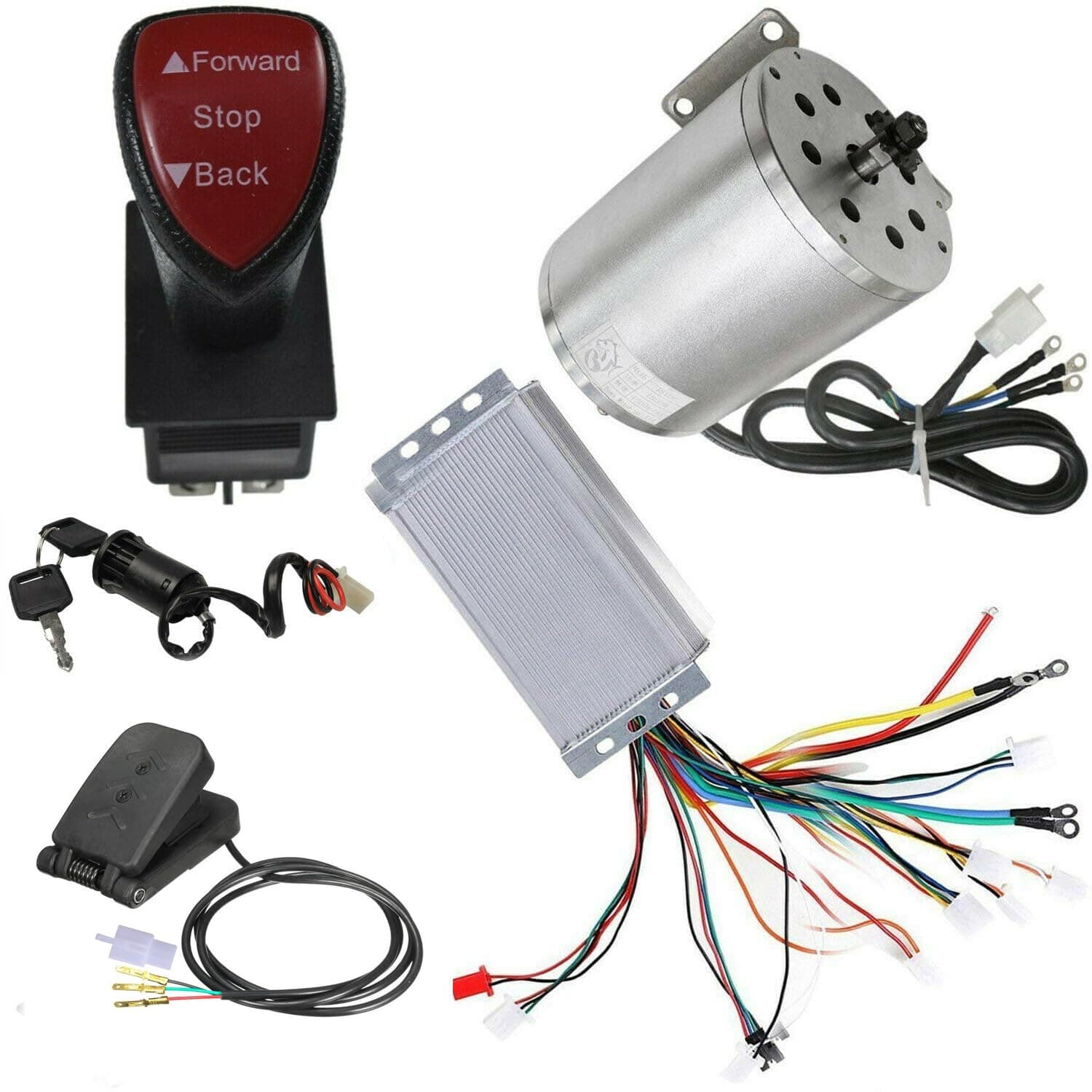

Included in the Package
- 1x 48V 1800W Brushless Motor
- 1x Controller
- 1x Throttle Pedal
- 1x Power Key Lock

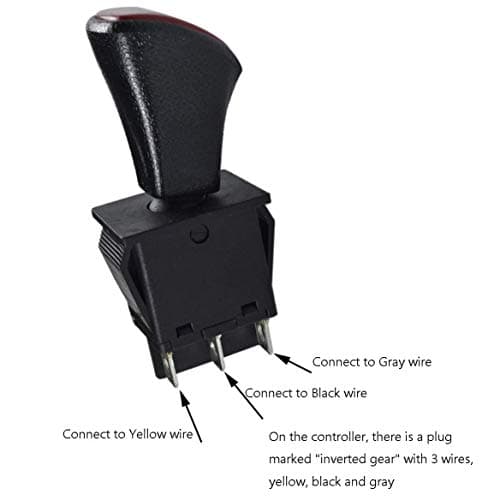

- 1x Forward/Reverse Switch
