Electric Brushless Motor Kit for DIY E-Bikes and Scooters

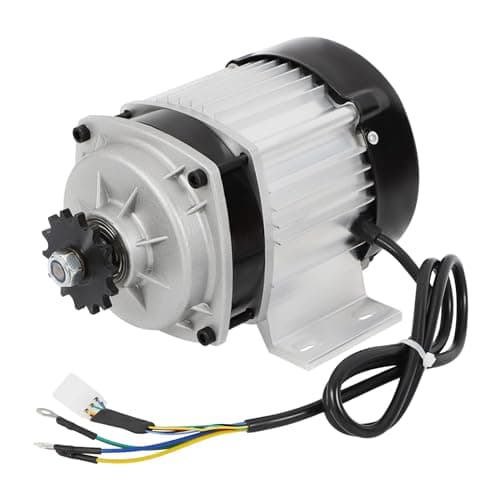

DescriptionThe permanent magnet brushless motor is carefully constructed with a pure copper coil and aluminum case, providing a superpower of 750 watts and a high efficiency of greater than or equal to 83% for tricycles. The motor operates without brush loss or excitation power, making it easy to maintain and energy-saving. This powerful, stable, and low-noise motor is an ideal partner for scooters, e-bikes, go-karts, electric bikes, electric tricycles, and more.

DetailsThe motor features a heat dissipation windshield on the back cover, allowing for increased heat dissipation capacity to prolong the motor's lifespan. The smooth output shaft is designed to protect your hands from scratches during installation, while also reducing noise due to decreased friction.

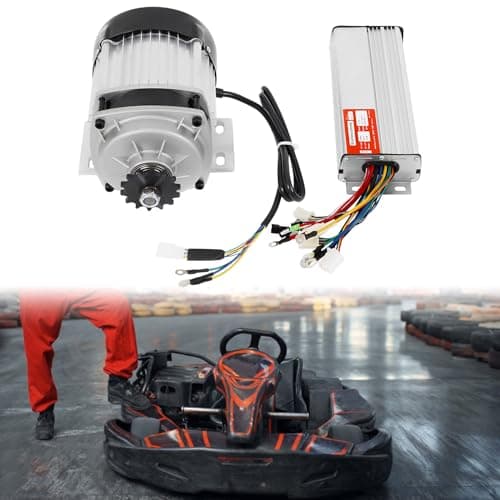

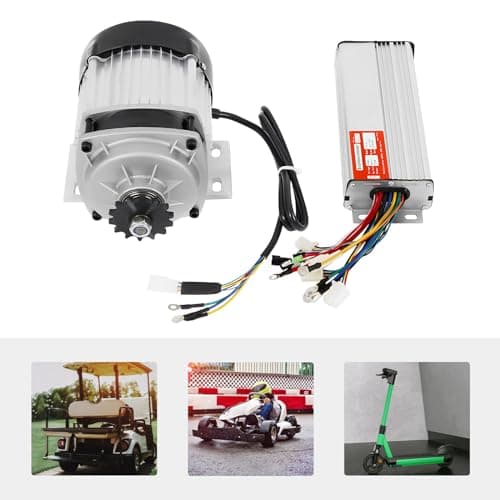

ApplicationThis motor is suitable for tricycles, e-bikes, electric scooters, medium-sized tricycles, and other similar vehicles.

Specification - Gross Weight: 6.1kg/13.44lbs - Package Size: 403020cm/15.7411.87.9in - Controller Matching Motor: 48V 750W - Rated Voltage: 48V DC - Under Voltage Protection: 42±0.5 V - Speed Regulator (Throttle): 1-4 V - Material: Aluminum, Copper - Motor Type: Pure Copper Motor - Rated Current: 15A - No Load Current: ≤3.0A - Rated Speed: 516RPM - No Load Speed: 3100RPM - Gear Ratio: 1:6 - Drive Sprocket: 420-14T - Rated Torque: 2.56 N.m - Efficiency: ≥83% - Max. Load-bearing Capacity: About 300kg/661lbs - Protection Level: IP65 - Speed Gears: High, Medium, Low - Motor Size: 231814cm/975.5in - Motor Net Weight: 5.2kg/11.46lbs

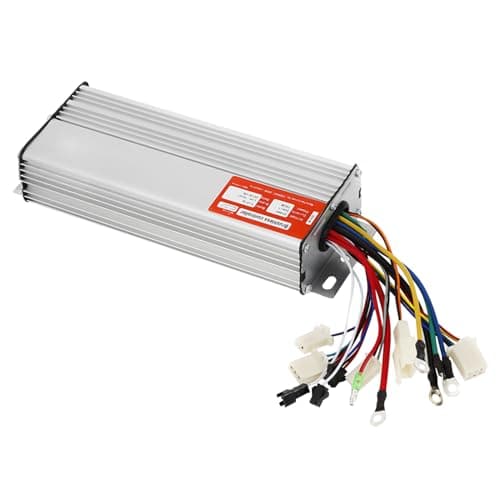

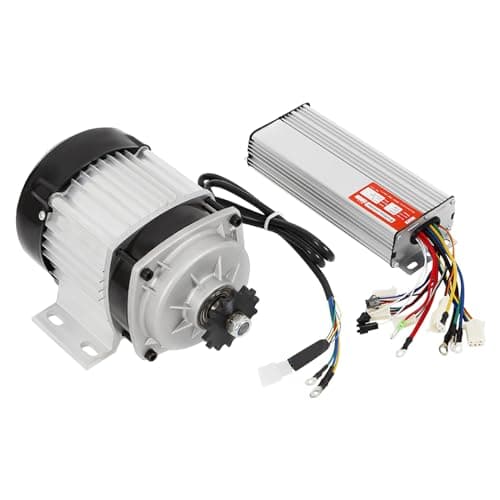

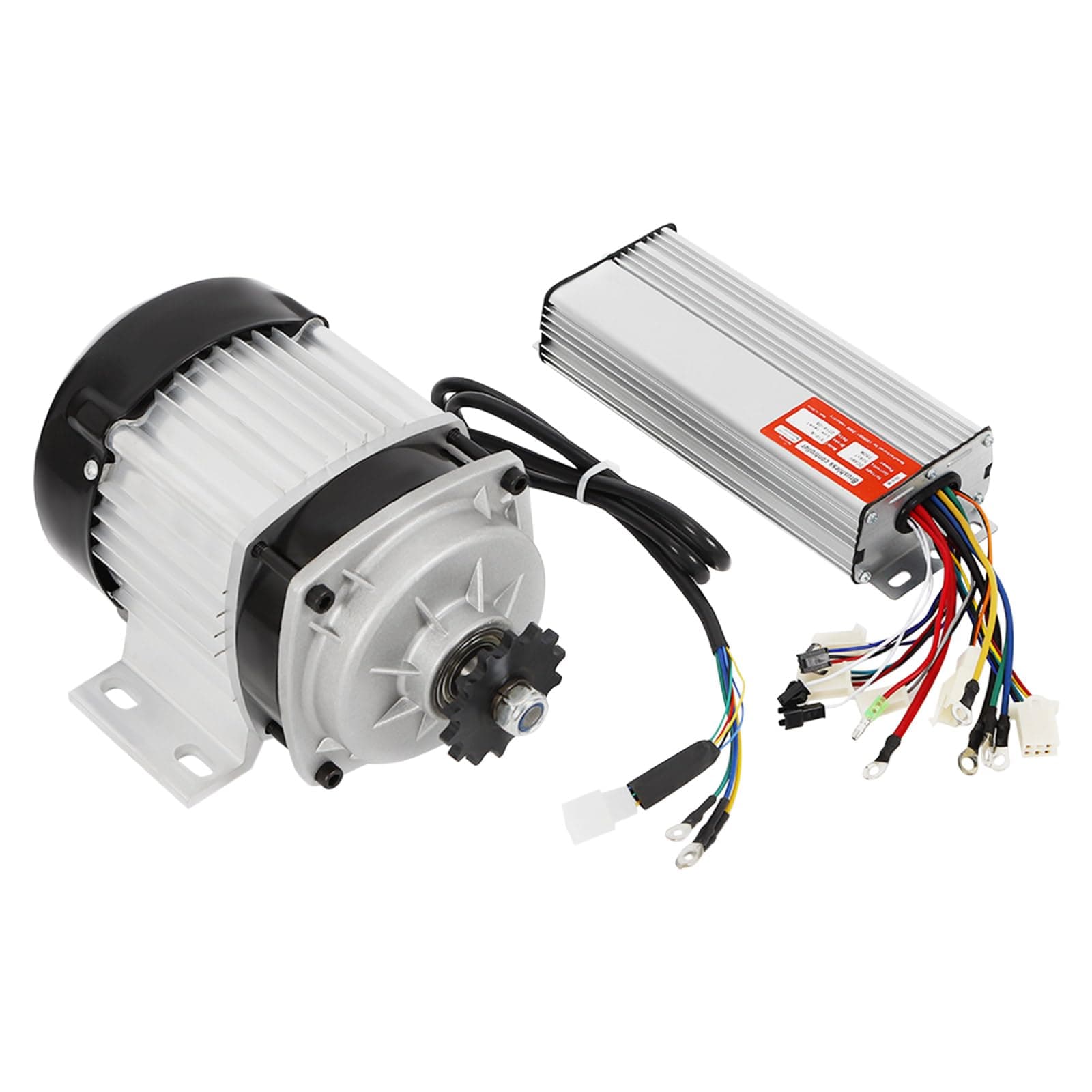

Package Included - 1Motor - 1Controller

Features - High-quality Material: Made of high-quality aluminum, the motor and controller body is rust-proof and anti-aging, ensuring a longer service life. - Three-speed Adjustable: With a rated speed of 516rpm and a no-load speed of 3100rpm, the motor offers three adjustable speeds (high, medium, low) to cater to various needs. - Waterproof and Dustproof: The motor's IP65 protection level effectively prevents water splashes from entering, enhancing product durability and extending lifespan. - High Power and Torque: The motor boasts a power of 750 watts and a torque of 2.56 N.m, providing ample power for electric tricycles and easy hill climbing capability. - High Efficiency and Energy-saving: The motor's efficiency of ≥83% with a no-load speed of 3100RPM surpasses that of excitation motors, making it more energy-efficient.

product information:

Attribute	Value
item_model_number	‎Beuioslyr
date_first_available	‎June 13, 2024
manufacturer	‎Beuioslyr
country_of_origin	‎China
